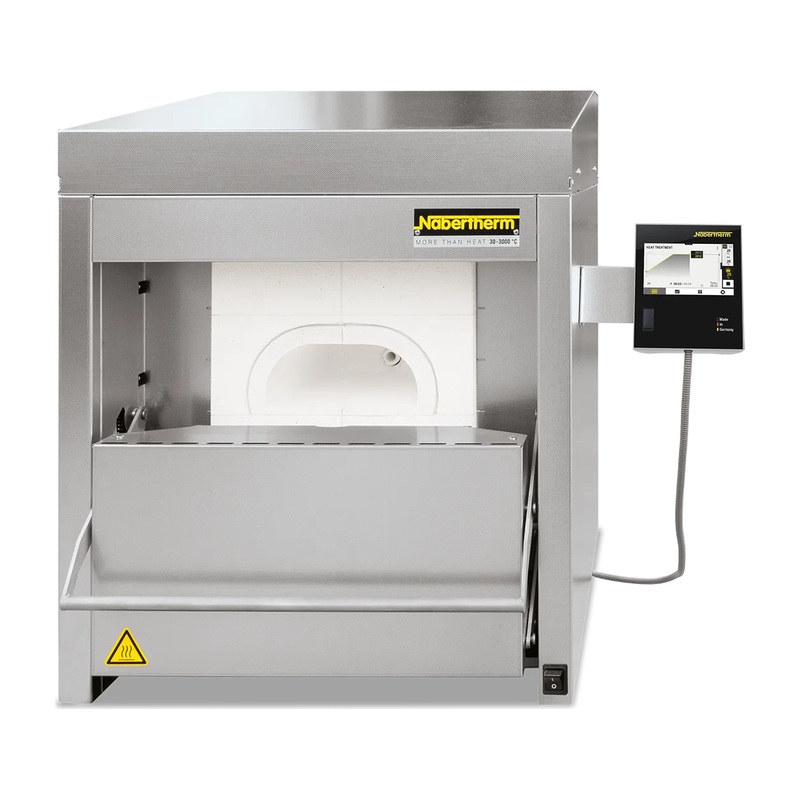

Fire Assay/Cupellation Furnaces up to 1300 °C
Fire Assay/Cupellation Furnaces up to 1300 °C
Référence
N 4/13 CUP
Cupellation is a process to separate precious metals, such as gold or silver, from alloys with base metals. During the process, aggressive gases that attack the insulation and the heating are released. Cupellation furnaces N ../13 CUP are especially designed for the very demandin
Add to cart
Buy Now
-
Delivery Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Fana will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
- Give us a shout if you have any other questions and/or concerns.
- Email: contact@mydomain.com
- Phone: +1 (23) 456 789
-
Size Guide
Size Guide
SIZE CHEST WAIST HIPS XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 -
Ask a Question
Ask a Question
Fire Assay/Cupellation Furnaces up to 1300 °C
[wpforms id="4609"]
Free
Worldwide
Shopping
100%
Guaranteed
Satisfaction
30 Days
Guaranteed
Money Back
Fire Assay/Cupellation Furnaces up to 1300 °C
Présentation
Cupellation is a process to separate precious metals, such as gold or silver, from alloys with base metals. During the process, aggressive gases that attack the insulation and the heating are released. Cupellation furnaces N ../13 CUP are especially designed for the very demanding process requirements.
Informations produit
- Référence principale : N 4/13 CUP
- Fabricant : Nabertherm
- Famille : Furnaces for Special Applications
Modèles / références disponibles
- N 4/13 CUP
- N 10/13 CUP
- N 30/13 CUP
- S 73/HS
Équipement standard
- Compact tabletop model
- Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
- Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
- Ceramic muffle to protect the heating elements and insulation
- Furnace chamber is heated from three sides (floor and sides) with heating elements on support tubes
- Extraction system with integrated exhaust hood on top of the furnace and above the door to connect to the customer's exhaust air system
- Manual lift door
- Defined application within the constraints of the operating instructions
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Équipement complémentaire
- Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
Filtres des documents
Autres documents
| Document | Type | Langue | Taille | Date | Édition |
|---|---|---|---|---|---|
| Catalogue Laboratory Nabertherm | Anglais | — | — | — |
