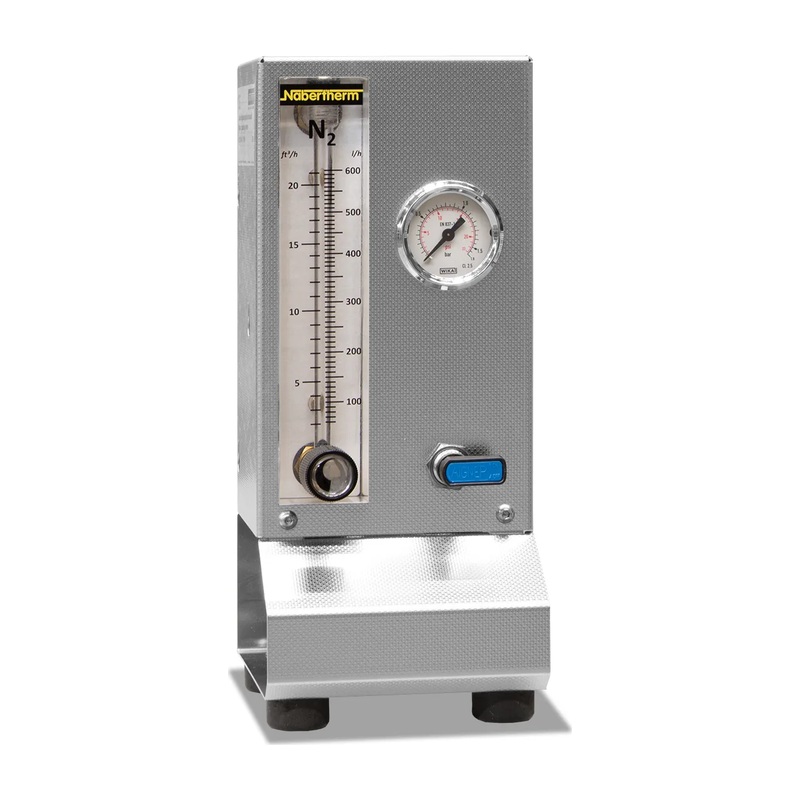

Gas Supply Systems 25 and 26
Présentation
Gas Supply Systems 25 and 26 for Non-Flammable Process Gases in Rotary Tube Furnaces, Gas-TightGas supply systems for non-flammable protective and reactive gases are also available for RSRB and RSRC rotary tube furnaces.
Informations produit
- Référence principale : RD
- Fabricant : Nabertherm
- Famille : Tube Furnaces
Modèles / références disponibles
- RD
- R
- RT
- RHTC
- RHTH
- RHTV
- RS
- RSRB
- RSRC
Équipement standard
- Gas panel for one non-flammable process gas (N 2 , Ar, He, air, forming gas*)
- Shut-off valve and flow meter with manual valve
- Supply of gas with 300 mbar required
- Gas supply system 25 for rotary tube furnaces for batch operation (RSRB) also includes gas-tight rotary lead-outs on the gas inlet and outlet as well as a gas cooler at the outlet. A check valve is also installed at the gas outlet to prevent air entering the tube.
- For gas supply system 26 for rotary tube furnaces for continuous processes (RSRC) the furnace must also be equipped with a feeding system.
Équipement complémentaire
- Additional gas panels for further non-flammable gases
- Automatic segment-related switching on/off by a magnetic valve
- Bottle pressure reducer for use with bottled gas
- Vacuum package for a maximum final pressure of up to 5 x 10 −2 mbar
