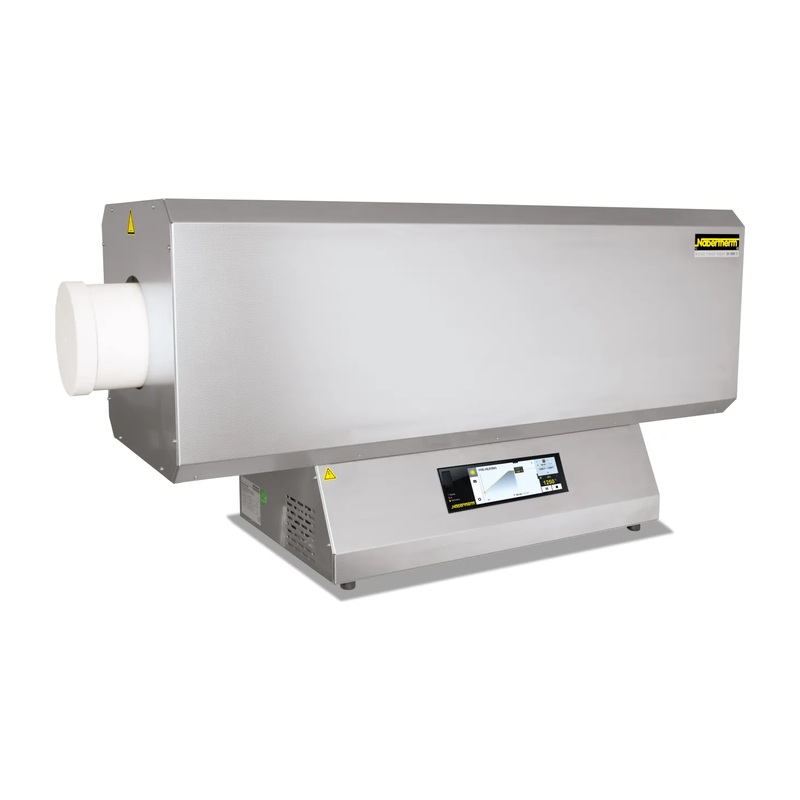

Compact Tube Furnaces up to 1300 °C
Compact Tube Furnaces up to 1300 °C
Référence
R 50/250/12
These compact tube furnaces with integrated control systems can be used universally for many processes. Equipped with a standard working tube of C 530 ceramic and two fiber plugs, these tube furnaces have a very good price/performance ratio.
Add to cart
Buy Now
-
Delivery Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Fana will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
- Give us a shout if you have any other questions and/or concerns.
- Email: contact@mydomain.com
- Phone: +1 (23) 456 789
-
Size Guide
Size Guide
SIZE CHEST WAIST HIPS XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 -
Ask a Question
Ask a Question
Compact Tube Furnaces up to 1300 °C
[wpforms id="4609"]
Free
Worldwide
Shopping
100%
Guaranteed
Satisfaction
30 Days
Guaranteed
Money Back
Compact Tube Furnaces up to 1300 °C
Présentation
These compact tube furnaces with integrated control systems can be used universally for many processes. Equipped with a standard working tube of C 530 ceramic and two fiber plugs, these tube furnaces have a very good price/performance ratio.
Informations produit
- Référence principale : R 50/250/12
- Fabricant : Nabertherm
- Famille : Tube Furnaces
Modèles / références disponibles
- R 50/250/12
- R 50/500/12
- R 120/500/12
- R 170/750/12
- R 170/1000/12
- R 50/250/13
- R 50/500/13
- R 120/500/13
- R 170/750/13
- R 170/1000/13
Équipement standard
- Tmax 1200 °C or 1300 °C
- Single-zoned design
- Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
- Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
- Outer tube diameter of 50 mm to 170 mm, heated length from 250 mm to 1000 mm
- Ceramic working tube C 530 including two fiber plugs for operation under air
- Thermocouple type N (1200 °C) or type S (1300 °C)
- Solid state relays provide for lownoise operation
- Heating elements on support tubes provide for free radiation
- Defined application within the constraints of the operating instructions
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
- Controller with touch operation B510 (5 programs with each 4 segments)
Équipement complémentaire
- Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
- Charge control with temperature measurement in the working tube
- Three-zoned design (heated length from 500 mm) for optimization of temperature uniformity
- Gas supply systems 1, 15, 2 or 4
- Process control and documentation via VCD software package for monitoring, documentation and control
