Split-Type Tube Furnaces for Horizontal and Vertical Operation up to 1300 °C

Split-Type Tube Furnaces for Horizontal and Vertical Operation up to 1300 °C

Présentation

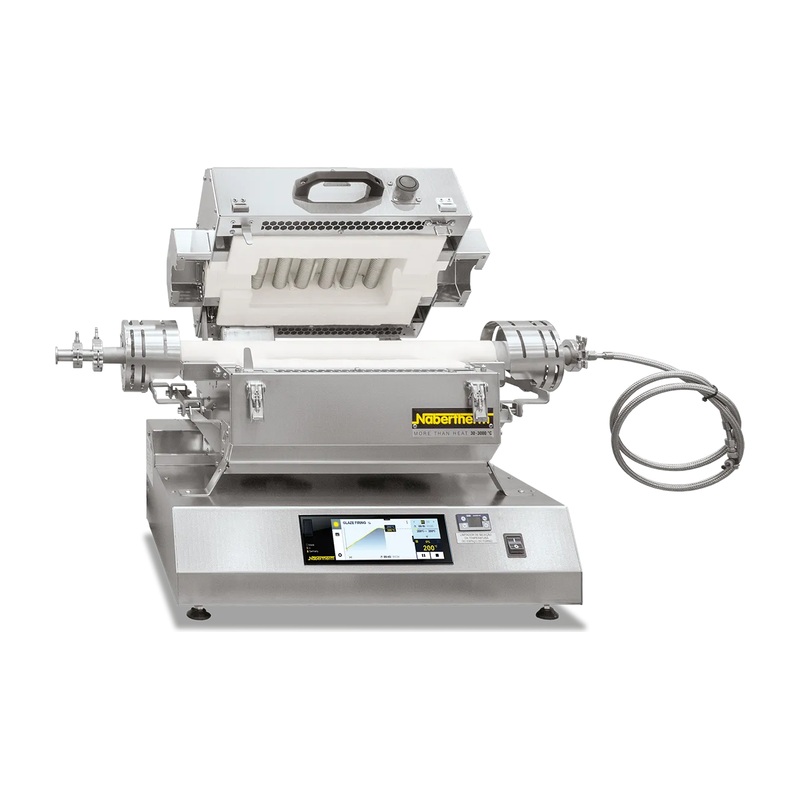

The tube furnaces of series RS .. can be used for horizontal and with optional frame for vertical operation. The split-type design makes it easy to change the working tube. It allows for a comfortable exchange of various working tubes (e.g. working tubes made of different materials).

Informations produit

• Référence principale : RS 50/250/11
• Fabricant : Nabertherm
• Famille : Tube Furnaces

Modèles / références disponibles

• RS 50/250/11
• RS 120/500/11
• RS 170/750/11
• RS 170/1000/11
• RS 50/250/13
• RS 120/500/13
• RS 170/750/13
• RS 170/1000/13

Équipement standard

• Tmax 1100 °C or 1300 °C
• Heated length from 250 mm to 1000 mm
• Maximum outer tube diameter up to 170 mm
• Single-zoned design
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
• Tabletop model, mounted horizontally on an external switchboard including controller
• 2 m connecting cable in a protective metal conduit
• Split-type design for simple insertion of the working tube (opening temperature < 180 °C)
• Ceramic working tube C 530 including two fiber plugs for operation under air
• Thermocouple type N (1100 °C) or type S (1300 °C)
• Solid state relays provide for lownoise operation
• Heating elements on support tubes provide for free radiation
• Controller with touch operation C550 (10 programs with each 20 segments)
• Defined application within the constraints of the operating instructions
• NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Équipement complémentaire

• Frame for converting the furnace to vertical operation
• Tube adapter shells for the use of tubes with different diameters
• Charge control with temperature measurement in the working tube
• Three-zone control for optimization of temperature uniformity
• Cooling systems for accelerated cooling of the working tube and charge
• Gas supply systems 1,15 or 2 for non-flammable process gas operation
• Gas supply system 4 for hydrogen operation
• Vacuum package to evacuate the working tube
• Process control and documentation via VCD software package for monitoring, documentation and control
