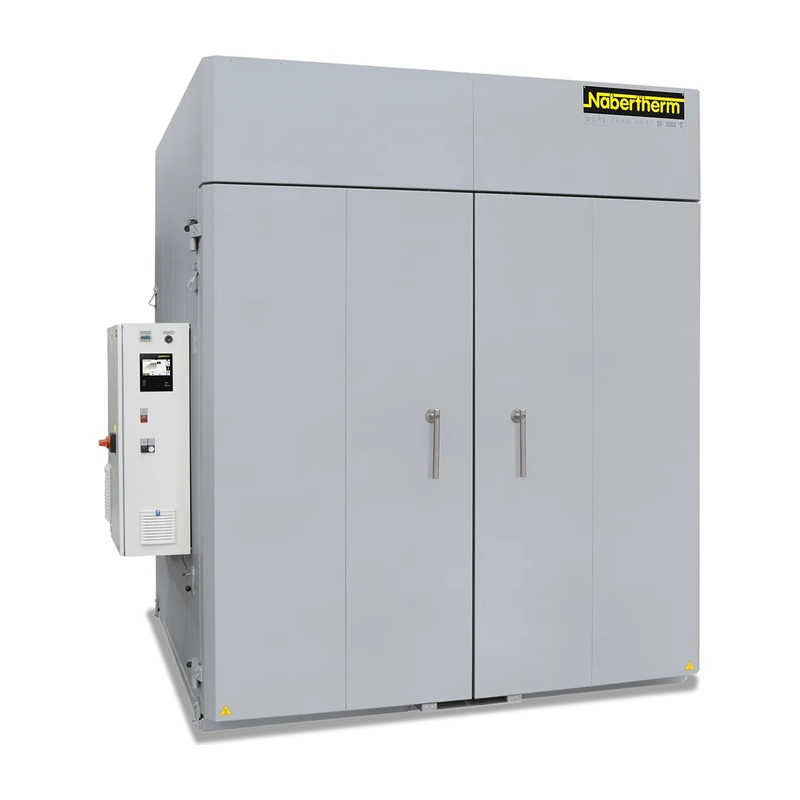

Chamber Ovens up to 260 °C

Chamber Ovens up to 260 °C

Présentation

The chamber ovens of the KTR range can be used for complex drying processes and heat treatment of charges to an application temperature of 260 °C. The high-performance air circulation enables optimum temperature uniformity throughout the work space. A wide range of accessories allow the chamber ovens to be modified to meet specific process requirements.

Informations produit

• Référence principale : KTR 1000
• Fabricant : Nabertherm
• Famille : Ovens and Forced Convection Furnaces

Modèles / références disponibles

• KTR 1000
• KTR 1500
• KTR 2000
• KTR 2300
• KTR 3100
• KTR 3400
• KTR 4500
• KTR 4600
• KTR 6000
• KTR 6125
• KTR 6250
• KTR 8000
• KTR 9000
• KTR 12300
• KTR 13250
• KTR 16000
• KTR 21300
• KTR 22500

Équipement standard

• Tmax 260 °C
• Electrically heated (via a heating register with integrated chrome steel heating elements) or gas-fired (direct or indirect gas-fired including injection of the hot air into the intake duct)
• Temperature uniformity up to +/− 3 °C according to DIN 17052-1 (for design wihout track cutouts)
• High-quality mineral wool insulation provides for outer temperatures of < 25 °C above room temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
• High air exchange for fast drying processes
• Double-wing door for furnaces KTR 2300 and larger
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Controller with touch operation B500 (5 prgrams with each 4 segments)
• Defined application within the constraints of the operating instructions
• NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Équipement complémentaire

• Direct or indirect gas-fired
• Base frame to charge the oven via a charging forklift
• Additional door in the back for charging from both sides or to use the oven as lock between two rooms
• Fan system for faster cooling with manual or motorized control of the exhaust flaps
• Programmed opening and closing of exhaust air flaps
• Air circulation with speed control, recommendable for processes with light or sensitive charge
• Observation window and furnace chamber lighting
• Design for clean room heat treatment processes
• Rotating systems e. g. for tempering processes
• All KTR-models are also available with Tmax 300 °C
• Process control and documentation via VCD software package or Nabertherm Control Center (NCC) for monitoring, documentation and control
