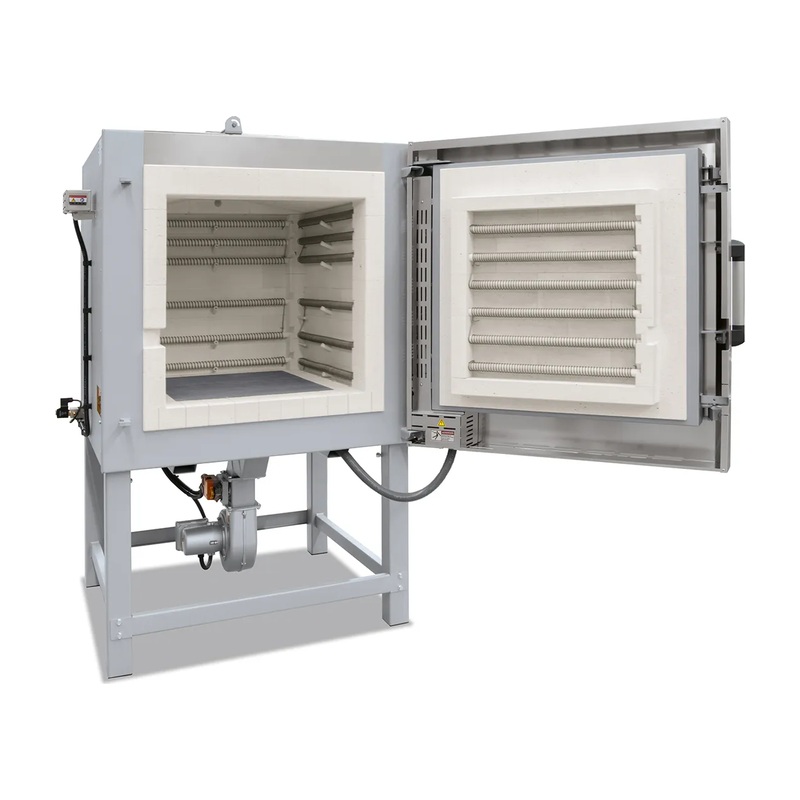

Chamber Furnaces with Brick Insulation or Fiber Insulation up to 1400 °C
Chamber Furnaces with Brick Insulation or Fiber Insulation up to 1400 °C
Référence
LH 15/12
These big chamber furnaces LH 15/12 – LF 120/14 have been trusted for many years as professional chamber furnaces for the laboratory. These furnaces are available with either a robust insulation of light refractory bricks (LH models) or with a combination insulation of refractory
Add to cart
Buy Now
-
Delivery Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Fana will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
- Give us a shout if you have any other questions and/or concerns.
- Email: contact@mydomain.com
- Phone: +1 (23) 456 789
-
Size Guide
Size Guide
SIZE CHEST WAIST HIPS XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 -
Ask a Question
Ask a Question
Chamber Furnaces with Brick Insulation or Fiber Insulation up to 1400 °C
[wpforms id="4609"]
Free
Worldwide
Shopping
100%
Guaranteed
Satisfaction
30 Days
Guaranteed
Money Back
Chamber Furnaces with Brick Insulation or Fiber Insulation up to 1400 °C
Présentation
These big chamber furnaces LH 15/12 – LF 120/14 have been trusted for many years as professional chamber furnaces for the laboratory. These furnaces are available with either a robust insulation of light refractory bricks (LH models) or with a combination insulation of refractory bricks in the corners and low heat storage, quickly cooling fiber material (LF models). With a wide variety of optional equipment, these chamber furnaces can be optimally adapted to your processes.
Informations produit
- Référence principale : LH 15/12
- Fabricant : Nabertherm
- Famille : Furnaces up to 1400 °C
Modèles / références disponibles
- LH 15/12
- LH 30/12
- LH 60/12
- LH 120/12
- LH 216/12
- LH 15/13
- LH 30/13
- LH 60/13
- LH 120/13
- LH 216/13
- LH 15/14
- LH 30/14
- LH 60/14
- LH 120/14
- LH 216/14
- LF 15/13
- LF 30/13
- LF 60/13
- LF 120/13
- LF 15/14
- LF 30/14
- LF 60/14
- LF 120/14
Équipement standard
- Tmax 1200 °C, 1300 °C, or 1400 °C
- Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
- High furnace chamber with five-sided heating for very good temperature uniformity
- Heating elements on support tubes ensure free heat radiation and a long service life
- Controller mounted on furnace door and removable for comfortable operation
- Protection of bottom heating and flat stacking surface provided by embedded SiC plate in the floor
- LH models: multi-layered insulation of light refractory bricks and special backup insulation
- LF models: high-quality fiber insulation with corner bricks for shorter heating and cooling times
- Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
- Door with brick-on-brick seal, hand fitted
- Gegenerously dimensioned heating provides for short heating times
- Self-supporting arch for high stability and greatest possible protection against dust
- Motorized exhaust air flaps
- Freely adjustable air inlet integrated in furnace floor
- Base included
- Controller with touch operation B500 (5 prgrams with each 4 segments)
- Defined application within the constraints of the operating instructions
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Équipement complémentaire
- Parallel swinging door (user protected from heat radiation)
- Lift door with electro-mechanic linear drive for opening when hot
- Cooling system to cool the furnace with a defined temperature gradient or with a preset fresh air volume. Both operating modes can be switched on and off for different segments by means of the extra function of the controller.
- Protective gas connection to purge with non-flammable process gases
- Manual or automatic gas supply system
- Stainless steel exhaust hood as interface to customer’s exhaust system
- Scale to measure weight reduction during annealing
- Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
- Process control and documentation via VCD software package for monitoring, documentation and control
Filtres des documents
Autres documents
| Document | Type | Langue | Taille | Date | Édition |
|---|---|---|---|---|---|
| Catalogue Laboratory Nabertherm | Anglais | — | — | — |
