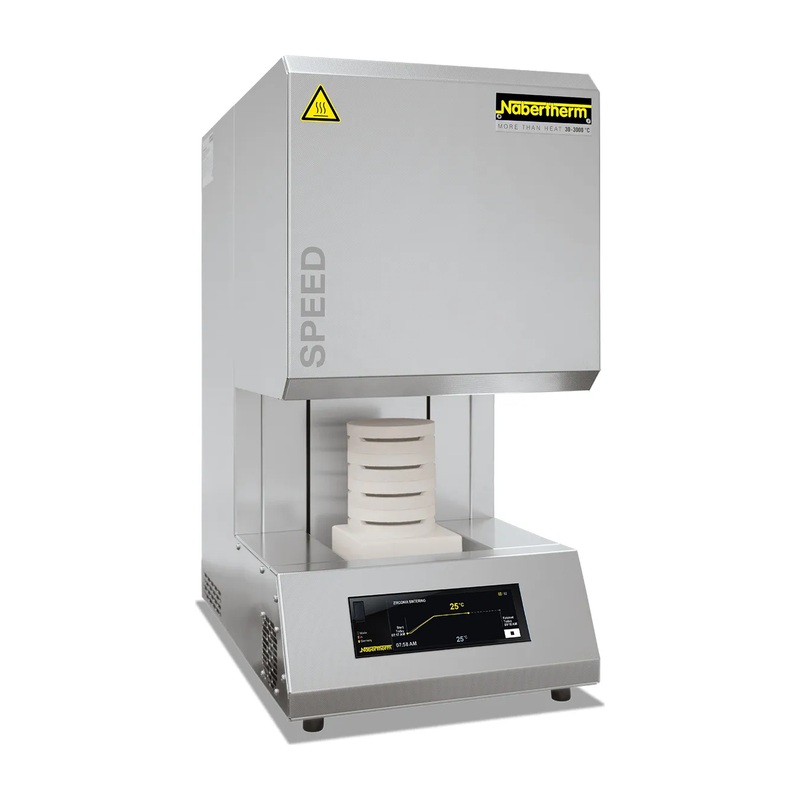

High-Temperature Bottom Loading Furnaces with molybdenum disilicide heating elements and fiber insulation up to 1650 °C
High-Temperature Bottom Loading Furnaces with molybdenum disilicide heating elements and fiber insulation up to 1650 °C
Référence
LHT 01/17 LB Speed
د.ت 1.000,000
The electrically driving lifting table significantly simplifies the charging of the high-temperature furnaces LHT ../.. LB Speed. The heating all around the cylindrical furnace chamber provides for an opitimal temperature uniformity.
Add to cart
Buy Now
-
Delivery Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Fana will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
- Give us a shout if you have any other questions and/or concerns.
- Email: contact@mydomain.com
- Phone: +1 (23) 456 789
-
Size Guide
Size Guide
SIZE CHEST WAIST HIPS XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 -
Ask a Question
Ask a Question
High-Temperature Bottom Loading Furnaces with molybdenum disilicide heating elements and fiber insulation up to 1650 °C
د.ت 1.000,000[wpforms id="4609"]
Free
Worldwide
Shopping
100%
Guaranteed
Satisfaction
30 Days
Guaranteed
Money Back
High-Temperature Bottom Loading Furnaces with molybdenum disilicide heating elements and fiber insulation up to 1650 °C
Présentation
The electrically driving lifting table significantly simplifies the charging of the high-temperature furnaces LHT ../.. LB Speed. The heating all around the cylindrical furnace chamber provides for an opitimal temperature uniformity.
Informations produit
- Référence principale : LHT 01/17 LB Speed
- Fabricant : Nabertherm
- Famille : High-Temperature Furnaces
Modèles / références disponibles
- LHT 01/17 LB Speed
- LHT 02/17 LB Speed
Équipement standard
- Tmax 1650 °C
- High-quality heating elements made of molybdenum disilicide offer very good protection against chemical interaction between charge and heating elements
- Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
- Very good temperature uniformity thanks to three (LHT 02/17 LB Speed) or four-sided (LHT 01/17 LB Speed) heating of the furnace chamber
- Furnace chamber with a volume of 1 or 2 liters, table with large floor space
- Precise, motorized toothed belt drive of the table with button operation
- Opening time of table approx. 30 sec., completely open
- Exhaust air vent in the roof
- Type S thermocouple
- Controller with touch operation P580 (50 programs with each 40 segments)
- Defined application within the constraints of the operating instructions
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Équipement complémentaire
- Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
- Stackable saggars for loading in up to two or three levels, depending on model
- Reduced opening time of table to 10 sec., completely open
- Adjustable air inlet through the floor
- Process control and documentation via VCD software package for monitoring, documentation and control
